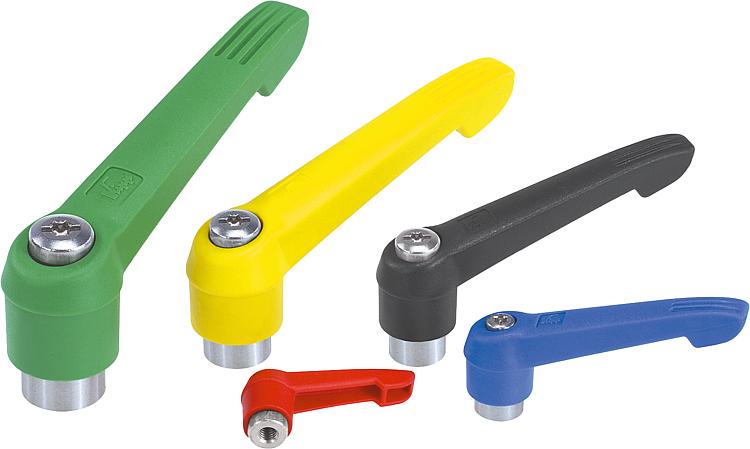

Item description/product images

DescriptionMaterial:

Handle fibreglass reinforced plastic with die-cast zinc toothed ring.
Steel parts stainless steel 1.4305 (AISI 303 equivalent).

Version:Steel parts bright.On request:Other threads and special versions.
Dimension “H1” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0270 inch Clamping levers, plastic with internal thread, threaded insert stainless steel - inch

524 kB

Drawings

Item selection/filter

Order No.	Main colour	Main material	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
K0270.1A01	black grey RAL 7021	plastic	1	10-24	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A02	orange RAL 2004	plastic	1	10-24	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A016	colza yellow RAL 1021	plastic	1	10-24	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A084	traffic red RAL 3020	plastic	1	10-24	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A086	signal green RAL 6032	plastic	1	10-24	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A087	black grey RAL 7021	plastic	1	10-24	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A11	black grey RAL 7021	plastic	1	10-32	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A12	orange RAL 2004	plastic	1	10-32	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A116	colza yellow RAL 1021	plastic	1	10-32	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A184	traffic red RAL 3020	plastic	1	10-32	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A186	signal green RAL 6032	plastic	1	10-32	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A187	traffic blue RAL 5017	plastic	1	10-32	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A21	black grey RAL 7021	plastic	1	1/4-20	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A22	orange RAL 2004	plastic	1	1/4-20	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A216	colza yellow RAL 1021	plastic	1	1/4-20	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A284	traffic red RAL 3020	plastic	1	1/4-20	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A286	signal green RAL 6032	plastic	1	1/4-20	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.1A287	traffic blue RAL 5017	plastic	1	1/4-20	9	10	13	14,5	24,5	4	15	30	33,5	40	47	7,5	16	on request
K0270.2A21	black grey RAL 7021	plastic	2	1/4-20	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A22	orange RAL 2004	plastic	2	1/4-20	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A216	colza yellow RAL 1021	plastic	2	1/4-20	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A284	traffic red RAL 3020	plastic	2	1/4-20	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A286	signal green RAL 6032	plastic	2	1/4-20	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A287	traffic blue RAL 5017	plastic	2	1/4-20	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A31	black grey RAL 7021	plastic	2	5/16-18	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A32	orange RAL 2004	plastic	2	5/16-18	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A316	colza yellow RAL 1021	plastic	2	5/16-18	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A384	traffic red RAL 3020	plastic	2	5/16-18	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A386	signal green RAL 6032	plastic	2	5/16-18	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.2A387	traffic blue RAL 5017	plastic	2	5/16-18	12	13,5	18	19,5	28,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
K0270.3A31	black grey RAL 7021	plastic	3	5/16-18	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A32	orange RAL 2004	plastic	3	5/16-18	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A316	colza yellow RAL 1021	plastic	3	5/16-18	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A384	traffic red RAL 3020	plastic	3	5/16-18	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A386	signal green RAL 6032	plastic	3	5/16-18	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A387	traffic blue RAL 5017	plastic	3	5/16-18	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A41	black grey RAL 7021	plastic	3	3/8-16	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A42	orange RAL 2004	plastic	3	3/8-16	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A416	colza yellow RAL 1021	plastic	3	3/8-16	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A484	traffic red RAL 3020	plastic	3	3/8-16	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A486	signal green RAL 6032	plastic	3	3/8-16	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.3A487	traffic blue RAL 5017	plastic	3	3/8-16	14	16	21,5	23	37	10	24	53,5	58	80	91,5	11	22	on request
K0270.4A41	black grey RAL 7021	plastic	4	3/8-16	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A42	orange RAL 2004	plastic	4	3/8-16	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A416	colza yellow RAL 1021	plastic	4	3/8-16	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A484	traffic red RAL 3020	plastic	4	3/8-16	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A486	signal green RAL 6032	plastic	4	3/8-16	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A487	traffic blue RAL 5017	plastic	4	3/8-16	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A51	black grey RAL 7021	plastic	4	1/2-13	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A52	orange RAL 2004	plastic	4	1/2-13	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A516	colza yellow RAL 1021	plastic	4	1/2-13	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A584	traffic red RAL 3020	plastic	4	1/2-13	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A586	signal green RAL 6032	plastic	4	1/2-13	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.4A587	traffic blue RAL 5017	plastic	4	1/2-13	17	19	25,5	27,5	43	10	26	61	66	95	109	13	24	on request
K0270.5A51	black grey RAL 7021	plastic	5	1/2-13	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A52	orange RAL 2004	plastic	5	1/2-13	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A516	colza yellow RAL 1021	plastic	5	1/2-13	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A584	traffic red RAL 3020	plastic	5	1/2-13	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A586	signal green RAL 6032	plastic	5	1/2-13	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A587	traffic blue RAL 5017	plastic	5	1/2-13	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A61	black grey RAL 7021	plastic	5	5/8-11	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A62	orange RAL 2004	plastic	5	5/8-11	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A616	colza yellow RAL 1021	plastic	5	5/8-11	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A684	traffic red RAL 3020	plastic	5	5/8-11	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A686	signal green RAL 6032	plastic	5	5/8-11	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
K0270.5A687	traffic blue RAL 5017	plastic	5	5/8-11	23	23	30	32,5	49	12	33	72	77	110	126	15,5	26	on request
