Locating pins and rest pads DIN 6321 (Issue 1973)
K0293

Locating pins and rest pads DIN 6321 (Issue 1973)

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Tool steel.Version:Hardened and ground.Note:Rest pads Form A are supports for workpieces and fixtures.
Locating pins Form B are for positioning workpieces and fixture components in reamed holes.
The flattened Form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only.
Form A and B can also be used as hardened stops and as fixture feet.
For similar pins see K0352, K0353, K0354 and K0355.
Drawing reference:

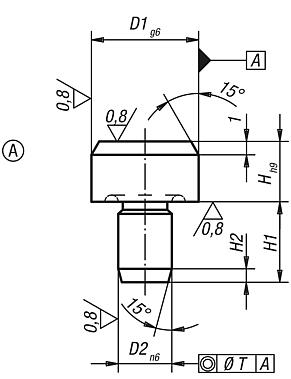

Form A: Rest pad
Form B: Cylindrical locating pin

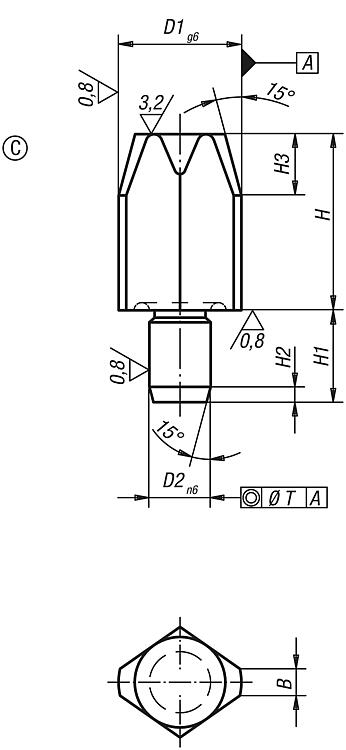

Form C: Flattened locating pin

Other dimensions see Form A.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0293 Locating pins and rest pads DIN 6321 (Issue 1973) 267 kB

Drawings (total overview)

Locating pins and rest pads DIN 6321 (Issue 1973)

Rest pads, Form A

More information

Drawings

Rest pads, Form A

Item selection/filter

Order No.FormVersion

D1

L1D2L2L3TCADAcc.PriceOrder
K0293.106Awithout centrebore65461,20,02 on request
K0293.110Awithout centrebore106691,60,02 on request
K0293.116Awithout centrebore16881220,04 on request
K0293.125Awithout centrebore251012182,50,04 on request

Cylindrical straight bolts, Form B

More information

Drawings

Cylindrical straight bolts, Form B

Item selection/filter

Order No.FormVersion

D1L1D2L2L3L4TCADAcc.PriceOrder
K0293.206Bshort67461,240,02 on request
K0293.208Bshort810691,660,02 on request
K0293.210Bshort1010691,660,02 on request
K0293.212Bshort1210691,660,02 on request
K0293.216Bshort1613812280,04 on request
K0293.220Bshort20151218290,04 on request
K0293.225Bshort251512182,590,04 on request
K0293.306Blong612461,240,02 on request
K0293.308Blong816691,660,02 on request
K0293.310Blong1018691,660,02 on request
K0293.312Blong1218691,660,02 on request
K0293.316Blong1622812280,04 on request
K0293.320Blong20251218290,04 on request
K0293.325Blong252512182,590,04 on request

Flattened straight bolts, Form C

More information

Drawings

Flattened straight bolts, Form C

Item selection/filter

Order No.FormVersion

D1L1D2L2L3L4BTCADAcc.PriceOrder
K0293.406Cshort67461,2410,02 on request
K0293.408Cshort810691,661,60,02 on request
K0293.410Cshort1010691,662,50,02 on request
K0293.412Cshort1210691,662,50,02 on request
K0293.416Cshort1613812283,50,04 on request
K0293.420Cshort201512182950,04 on request
K0293.425Cshort251512182,5950,04 on request
K0293.506Clong612461,2410,02 on request
K0293.508Clong816691,661,60,02 on request
K0293.510Clong1018691,662,50,02 on request
K0293.512Clong1218691,662,50,02 on request
K0293.516Clong1622812283,50,04 on request
K0293.520Clong202512182950,04 on request
K0293.525Clong252512182,5950,04 on request
