K1774Swivel castors compact version |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing steel plate, trivalent blue passivated.
Roller light brown polyurethane, Shore 92 A
or white polyamide, Shore 80 D.Version:Housing press formed.
Swivel castor housing with 2x ball bearing in the swivel head and ball shield.
Roller with two pressed-in ball bearings.Note:Wheel axle bolted.
Polyurethane roller: low-noise, low rolling resistance, elastic, floor-protecting, very wear resistant , non-staining.
Polyamide roller: very low roll and pivot resistance, smooth running on smooth floors, very wear resistant. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

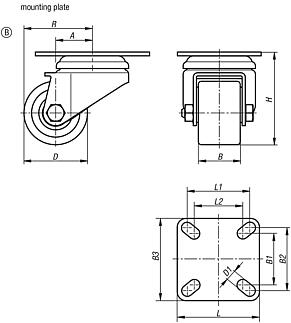

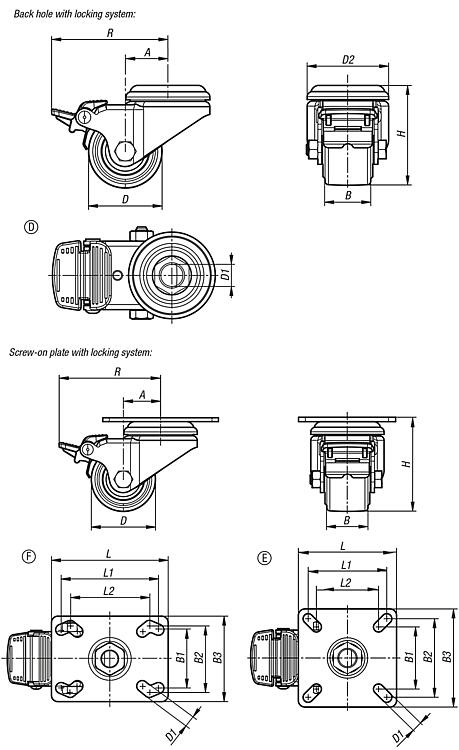

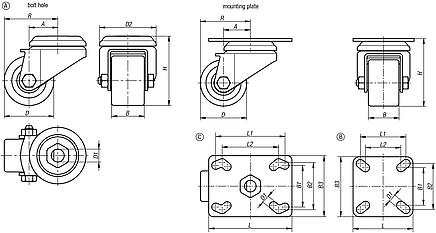

Drawings (total overview) |
|
| Order No. | Form | Item | Version 1 | Kind of fastening | Wheel
bearing | Material
roller
| A | B | B1 | B2 | B3 | D
| D1 | H | L | L1 | L2 | R | Permissible
load
kg | CAD | Acc. | Price | Order |
|---|
| K1774.0352711 | B | Swivel castor | without locking system | Mounting plate | Ball bearing | polyurethane | 15 | 27 | 38 | 48 | 60 | 35 | 6,2 | 52 | 60 | 48 | 38 | 32,5 | 100 |  | | on request | | | K1774.0352812 | B | Swivel castor | without locking system | Mounting plate | Ball bearing | polyamide | 15 | 28 | 38 | 48 | 60 | 35 | 6,2 | 52 | 60 | 48 | 38 | 32,5 | 100 | | | on request | |
|
| Order No. | Form | Item | Version 1 | Kind of fastening | Wheel
bearing | Material
roller
| A | B | B1 | B2 | B3 | D
| D1 | H | L | L1 | L2 | R | Permissible
load
kg | CAD | Acc. | Price | Order |
|---|
| K1774.0503311 | C | Swivel castor | without locking system | Mounting plate | Ball bearing | polyurethane | 29 | 33 | 45 | 51 | 66 | 50 | 8,5 | 73 | 90 | 75 | 61 | 54 | 150 | | | on request | | | K1774.0503212 | C | Swivel castor | without locking system | Mounting plate | Ball bearing | polyamide | 29 | 32 | 45 | 51 | 66 | 50 | 8,5 | 73 | 90 | 75 | 61 | 54 | 150 | | | on request | |
|
|
| Order No. | Form | Item | Version 1 | Kind of fastening | Wheel
bearing | Material
roller
| A | B | B1 | B2 | B3 | D
| D1 | H | L | L1 | L2 | R | Permissible
load
kg | CAD | Acc. | Price | Order |
|---|
| K1774.0352732 | E | Swivel castor | With Radstop locking system | mounting plate | Ball bearing | polyamide | 15 | 27 | 38 | 48 | 60 | 35 | 6,2 | 52 | 60 | 48 | 38 | 63 | 100 | | | on request | | | K1774.0352731 | E | Swivel castor | With Radstop locking system | mounting plate | Ball bearing | polyurethane | 15 | 27 | 38 | 48 | 60 | 35 | 6,2 | 52 | 60 | 48 | 38 | 63 | 100 | | | on request | |
|
| Order No. | Form | Item | Version 1 | Kind of fastening | Wheel
bearing | Material
roller
| A | B | B1 | B2 | B3 | D
| D1 | H | L | L1 | L2 | R | Permissible
load
kg | CAD | Acc. | Price | Order |
|---|
| K1774.0503331 | F | Swivel castor | With Radstop locking system | mounting plate | Ball bearing | polyurethane | 29 | 33 | 45 | 51 | 66 | 50 | 8,5 | 73 | 90 | 75 | 61 | 80 | 150 | | | on request | | | K1774.0503332 | F | Swivel castor | With Radstop locking system | mounting plate | Ball bearing | polyamide | 29 | 33 | 45 | 51 | 66 | 50 | 8,5 | 73 | 90 | 75 | 61 | 80 | 150 | | | on request | |
|
