K1515T-grip, stainless steel with external thread for Hygienic USIT®... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:The complete surface is polished to a high gloss with a surface finish of Ra 0.8 µm. This means that dirt and impurities can hardly adhere. Easy cleaning is ensured.
The Hygienic USIT® sealing and shim washers from Freudenberg Process are used to seal the fastening point. The shaft of the T-grip is specially designed to suit this seal. A cavity-free seal of the fastening point is created, which satisfies hygienic regulations. Material:Stainless steel 1.4404. Version:High-gloss polished.On request:Other screw lengths and inch threads.Accessory:Hygienic USIT® sealing and shim washer K1491 for the screw-on surface. Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

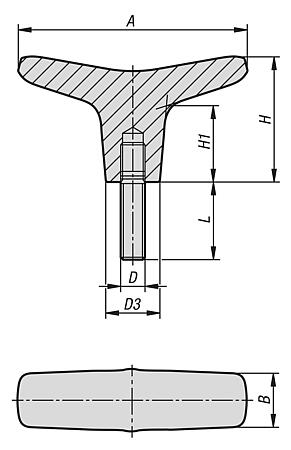

| Order No. | D
| L | A | B | D3 | H | H1 | CAD | Acc. | Price | Order |
|---|
| K1515.5505X10 | M5 | 10 | 55,2 | 12,3 | 11,65 | 32,9 | 21 |  | | 0.00 € | | | K1515.5505X20 | M5 | 20 | 55,2 | 12,3 | 11,65 | 32,9 | 21 | | | 0.00 € | | | K1515.5505X30 | M5 | 30 | 55,2 | 12,3 | 11,65 | 32,9 | 21 | | | 0.00 € | | | K1515.5505X40 | M5 | 40 | 55,2 | 12,3 | 11,65 | 32,9 | 21 | | | 0.00 € | | | K1515.6506X10 | M6 | 10 | 65,3 | 14 | 14 | 37 | 22,7 | | | 0.00 € | | | K1515.6506X20 | M6 | 20 | 65,3 | 14 | 14 | 37 | 22,7 | | | 0.00 € | | | K1515.6506X30 | M6 | 30 | 65,3 | 14 | 14 | 37 | 22,7 | | | 0.00 € | | | K1515.6506X40 | M6 | 40 | 65,3 | 14 | 14 | 37 | 22,7 | | | 0.00 € | | | K1515.7508X20 | M8 | 20 | 75,3 | 17,7 | 17,8 | 41,2 | 24,9 | | | 0.00 € | | | K1515.7508X30 | M8 | 30 | 75,3 | 17,7 | 17,8 | 41,2 | 24,9 | | | 0.00 € | | | K1515.7508X40 | M8 | 40 | 75,3 | 17,7 | 17,8 | 41,2 | 24,9 | | | 0.00 € | |
